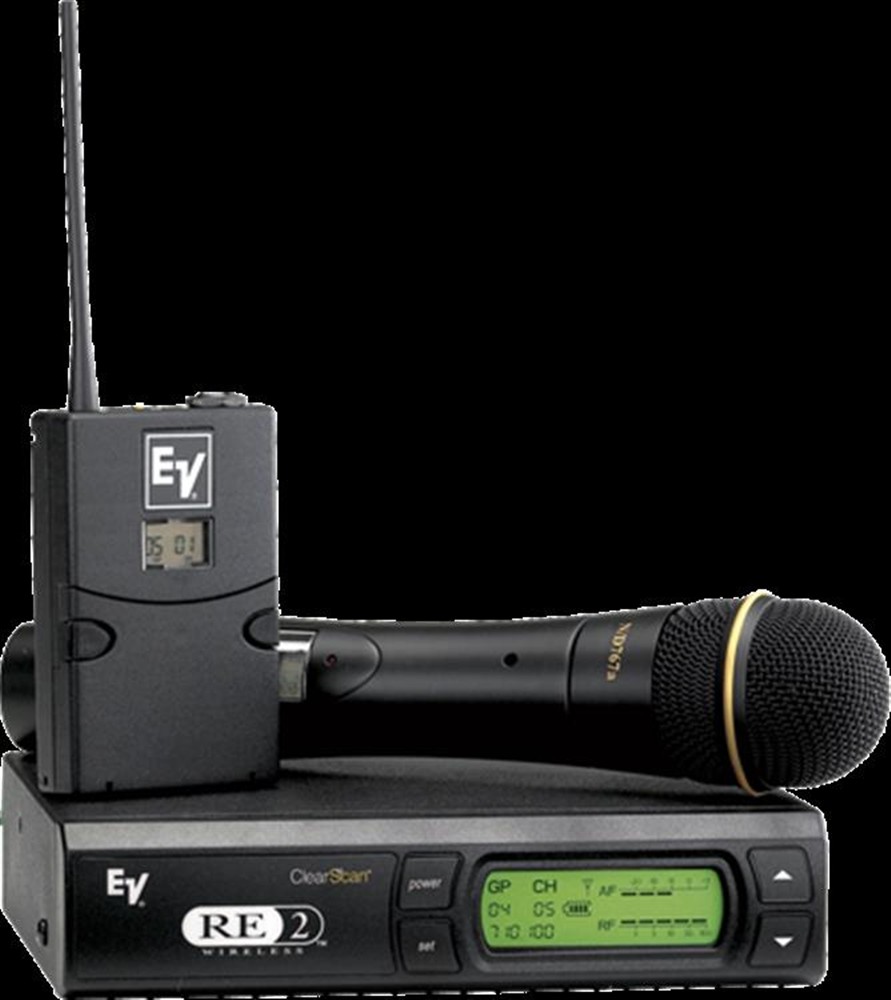

| Handheld Transmitter |
|---|
| Type of Transmitter | UHF Frequency Agile Handheld |
| Type of Input Connector | not applicable |
| Type of Microphone | N/D 767A - Dynamic |
| Polar Pattern | Super-cardioid |
| Interchangeable Mic Heads | No |
| Battery Type/Approx. Life | 8 hours with 9-Volt alkaline battery (typical) |
| Mute Switch | On / Off & Mute Switch (combined) |
| Level Control | Gain Adjustment: 40dB range
Microphone / Instrument Switch: 0, -20dB |
| Antenna Type | Internal 1/4 wave detachable |
| Display | Backlit LCD
Displays - Group, Channel, Frequency and Low Battery Level
Red LED
Low Battery Indicator |
| Dimensions | 10.5" (26.8cm) (Long) |
