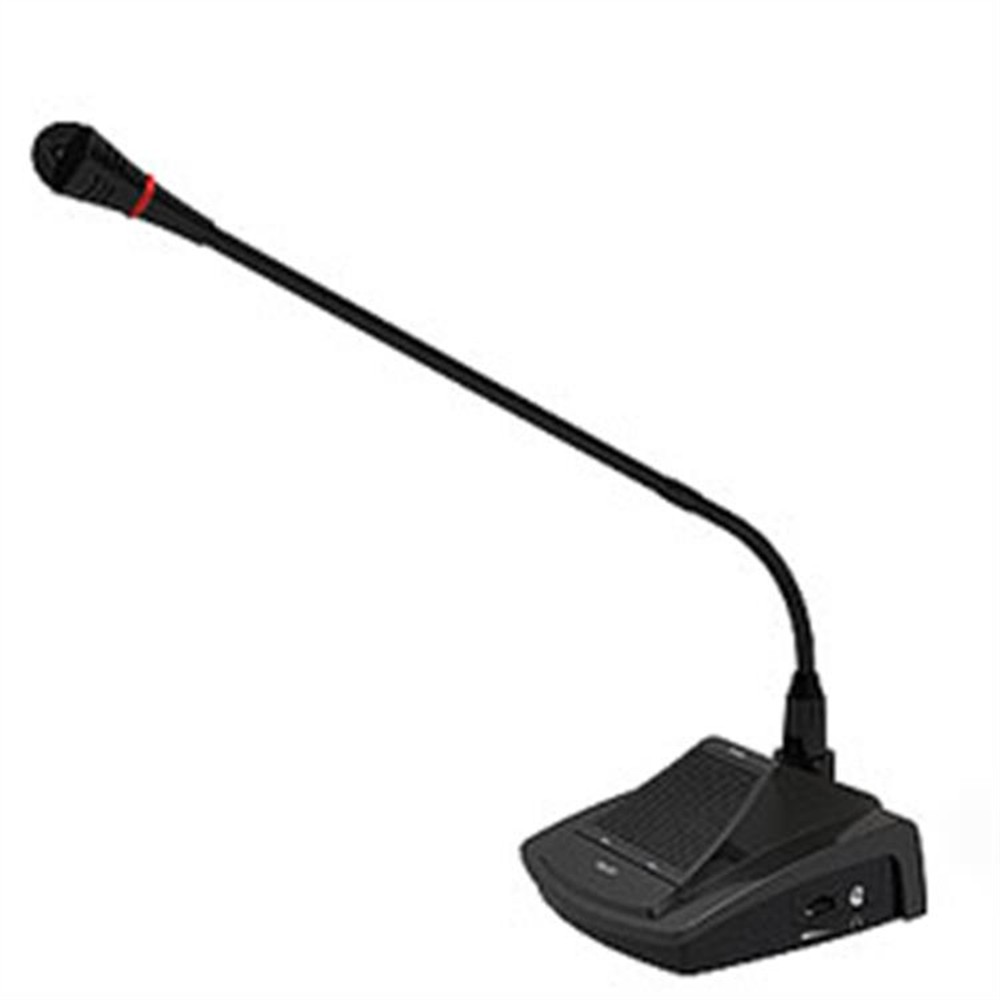

Delegate Microphone - TS-0602

Delegate Microphone - TS-0602

Delegate Microphone - TS-0602

Price: Please contact

Product code: AIM0926

Status: Please order

Category Products: Audio Conference

Inquire Now a quoteContact us for a quote now
Mua ngay: 0961.59.9696 (Hotline 24/7 - Contact us for a quote now)
Chat Zalo(Sales engineer with 10 years of experience)

Delegate Microphone - TS-0602

Brand: ITC

Features:

  • Designed with the latest digital control technology.

  • Red light indicates that someone is speaking, green light indicates someone is waiting to speak or is requesting to speak.

  • Unique microphone design with a special wind shield that effectively eliminates low-frequency sound interference and filters out noise.

  • The chairman unit is not restricted by the delegate unit functions.

  • The chairman unit has priority functions for complete control of the conference and can connect to any other system.

  • High sensitivity microphone with omnidirectional pickup.

  • Power is supplied by the system, with a 24V input.

Technical Specifications:

SpecificationTS-0602
Power SupplyDC24V (Powered by the controller)
Connection8-core aviation plug
Power Consumption3W
Headphone Output9dBu, 8-32Ω, 3.5mm mini-type socket
Speaker Power≤2W
Microphone TypeHigh directivity column polar body
DirectivityHeart shape
S/N Ratio>80dB
Antenna Noise>80dB
Total Harmonic Distortion<0.10%
Frequency Response60-16kHz
Equivalent Noise≈20dB SPL
Maximum Sound Pressure Level105dB (3% threshold)
Sensitivity-22dBv/Pa
Microphone Length415mm
ColorBlack
Dimensions144 x 128 x 62mm
Weight0.86Kg
